Commercial doors built for your facility.

Loading docks, fire stations, service bays, cold storage, self-storage, retail roll-ups. We supply and install the full Amarr commercial lineup: insulated steel sectional, aluminum full view, rolling slat and sheet. Sized to your duty cycle and spec'd against the wind load and energy codes that apply to your project.

40'
max width
Steel sectional, custom builds
R-28
verified U-factor
DASMA TPVP third-party tested
25 yr
rolling sheet warranty
Industry-leading on Amarr 5-series
Project spec sheet Sample spec
Building type Distribution warehouse
Opening 12'0" × 14'0"
Cycles / day ~80
Energy code ASHRAE 90.1 / IECC
Recommended Amarr 2742 + LiftMaster MAXUM JDC
R-19.4 verified. Pencil-groove insulated steel, polyurethane core, jackshaft operator rated for industrial duty. Final spec confirmed during free site walk.
Authorized Dealer · Amarr Commercial Lineup
Amarr Commercial
DASMA TPVP Verified
LEED Qualified Products
USA FTC Made-in-USA & ARRA §1605
By industry

Different applications need different doors.

A loading dock, a firehouse, and a restaurant patio all need very different doors. Start with how the opening is used and we'll narrow the lineup from there. These are the seven verticals we install for most across the Roanoke Valley.

01 Manufacturing & Distribution Heavy-duty insulated steel sectional. Loading docks see 50+ cycles per day. Durability and air-seal matter most. Amarr 2747 / 2742
02 Auto Dealerships Aluminum full view to showcase inventory after hours. Wide spans and large glass panels showcase vehicles. Amarr 3582
03 Service and Repair Full-view sections let customers see vehicles while keeping bay temperatures in range. Mix glass and solid panels. Amarr 2502/12/22
04 Fire Departments Two or more aluminum full-view sections protect apparatus bays while letting crews assess exit routes. Amarr 2742 with glass
05 Commercial Real Estate Office buildings opening glass walls to outdoor space. Natural light, ventilation, and dynamic facade. Amarr 3552
06 Restaurants and Food Service Open dining rooms with broad expanses of full-view glass. Extends patio season year-round. Amarr 3552
07 Self-Storage High-volume rolling sheet doors as small as 3 feet wide. Consistent hardware and 25-year warranties. Amarr 5101
08 Entertainment Venues Aluminum sectional to make architectural statements. Breweries, theaters, music venues. Door as design element. Amarr 3552 or 3582
Door families

Four families. Pick by construction, then by performance.

Amarr's commercial line is organized by construction, not aesthetics. Sectional or rolling, steel or aluminum, insulated or open. We help you pick the family first, then the model inside it.

Amarr insulated steel sectional commercial door
Most installed DASMA verified
2000 / 2700 series

Insulated steel sectional · 1-3/8" → 3" thick

Polyurethane insulated steel

The workhorse of Amarr's commercial line. Triple-layer construction, foamed-in-place polyurethane core, and the highest verified R-values per inch in the category. What we install for the vast majority of warehouse, dock, and conditioned-space openings.

Model Build R-value
2743 Super 3" · 27 ga · super-duty 28.0
2042 XHD 2" · 20 ga · extra heavy-duty 19.4
2742 HD 2" · 27 ga · pencil groove 19.4
2741 Med 1-3/8" · 27 ga · value 14.5
CFC, HFC, HCFC free · zero ODP/GWP

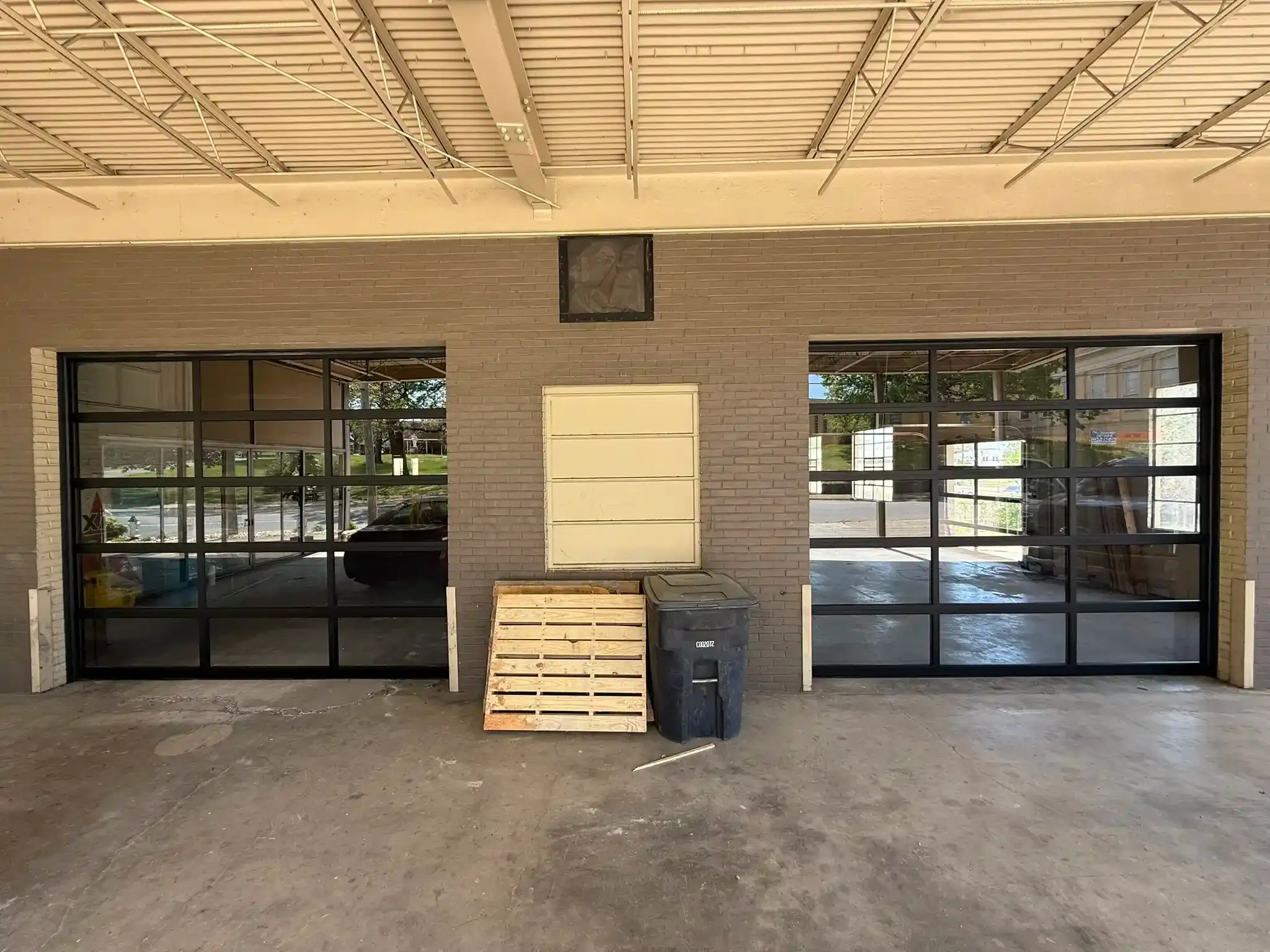

Amarr aluminum full-view commercial doors
Architectural WaterLok seal
3500 series

Aluminum sectional · 2" thick · full or multi-view

Aluminum full view

Distinctive design with long horizontal expanses of glass. 2" extruded commercial-grade aluminum frame with the ClearView strut system that adds wind-load reinforcement without restricting the viewing area. Showrooms, fire bays, breweries, restaurants.

Model Build Width
3552 Full view glass panels · 5 yr finish to 24'2"
3582 Multi-view · narrow horizontal glass to 24'2"
PVDF · powder coat · anodize · 700+ colors

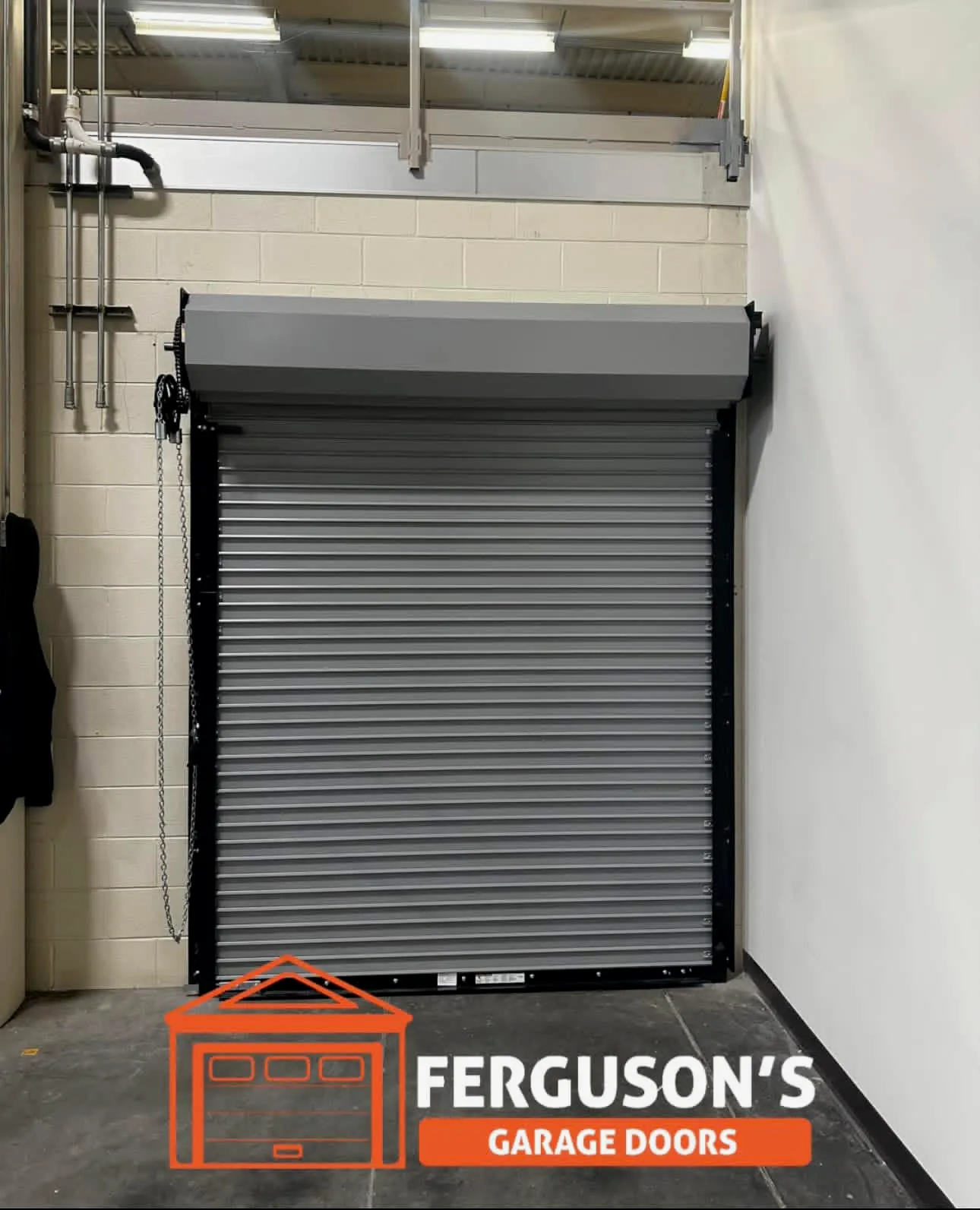

Commercial gray rolling slat door with chain hoist in warehouse interior
Service · fire · counter Up to 3 hr fire rated
4000 series

Steel slat · interlocking · roll-up

Rolling slat & grille

Roll-up doors that coil overhead instead of folding into a track. Service openings, fire-rated walls, counter shutters, and security grilles where airflow and visibility matter. Available insulated, fire-rated, or as see-through aluminum grille.

Series Use R-value
4000 Service · 18–24 ga flat slat N/A
4100 Insulated slat · polyurethane 8.0
4200 Fire door · up to 3 hr rated 5.3
4300 Aluminum grille · airflow + vis N/A
Replaceable slats · powder-coat guides standard

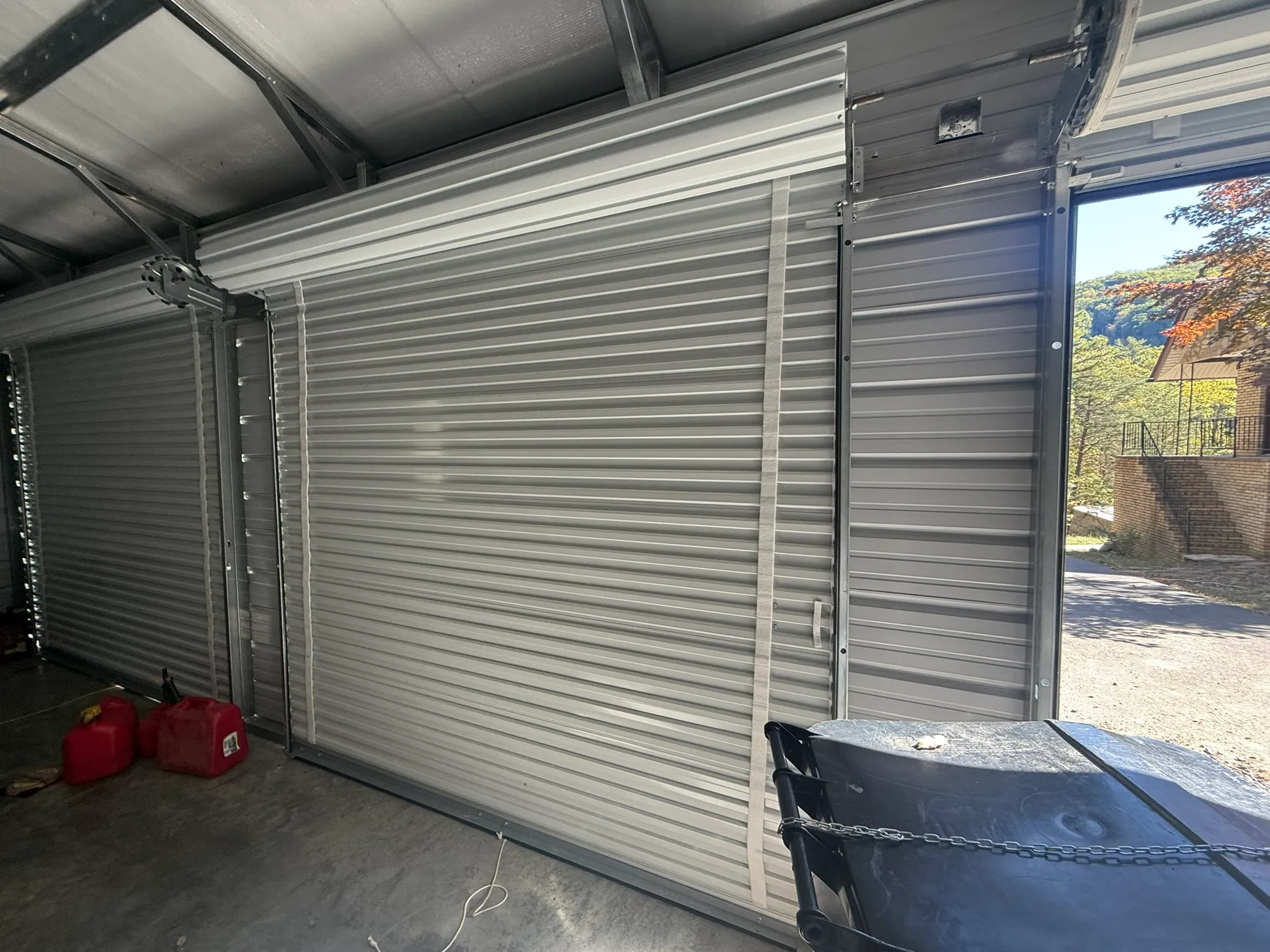

Galvanized rolling sheet commercial doors in metal building interior
25 yr warranty Self-storage scale
5000 series

Continuous galvanized sheet · enclosed barrel

Rolling sheet

Single sheet of galvanized steel rolled into an overhead barrel — no slats. Light footprint, low cost per opening, and Amarr's industry-leading 25-year warranty across the line. The default for self-storage, light-duty docks, and wind-load coastal applications.

Series Use Duty
5101 Self-storage · widths from 3' Std
5501 Light duty · commercial LT
5601 Heavy duty · 12" barrel HD
5652 Wind load · nylon windlocks WL
26 ga galvanized · adjustable tension
Thermal performance

R-value claims vs. U-factor proof.

On a conditioned-space opening, the door is often the largest hole in the building envelope. Amarr's polyurethane sectional line carries DASMA-verified U-factor ratings: third-party tested across the entire door assembly, not just a strip of foam.

DASMA TPVP

Verified by certified third-party labs.

The Thermal Performance Verification Program tests a full sectional door assembly: insulation, thermal breaks, glazing, the whole panel. The number on the spec sheet is the number you actually get on the building. Amarr publishes verified U-factor on all insulated commercial models.

TPVP
Lower U-factor is better. It measures heat transfer through the assembly under controlled lab conditions. Higher R-value insulates more, but only U-factor proves the door performs.
Polyurethane line U / R
2743 0.17 R-28.0
2042 0.19 R-19.4
2442 0.19 R-19.4
2742 0.19 R-19.4
2747 0.20 R-15.1
2741 0.21 R-14.5
Bar length = relative thermal performance
Rolling line up close

For openings that don't have ceiling room for a sectional track.

Roll-up doors coil into an overhead barrel, not a horizontal track. Critical for self-storage, fire walls, and existing structures with limited headroom. Six series we install most often across the Roanoke Valley.

5101 Series

Self-storage sheet

Light

26-ga galvanized curtain on a 9-1/2" enclosed barrel. Standard for storage facility operators: widths from 3 feet up, adjustable tension, steel bearing shaft support.

  • + Adjustable tensioning device
  • + Steel bearing shaft support
  • + Widths starting at 3'0"
26 ga
curtain
9.5"
barrel
25 yr
warranty
4100 Series

Insulated slat

HD

Polyurethane-insulated rolling slat with replaceable 18–24 ga slats. Flame Spread Index 0 / Smoke Developed Index 10 per ASTM E84. For conditioned warehouse openings without sectional headroom.

  • + R-value 8.0 polyurethane core
  • + Replaceable individual slats
  • + Powder-coated guides standard
R-8.0
insulation
FSI 0
flame spread
2 yr
warranty
4200 Series

Fire door

Fire

Heavy-duty rolling steel for openings cut into a fire wall. Up to 3-hour rating, automatic closure on alarm signal, three standard colors, replaceable 22/20/18 ga flat slats.

  • + Up to 3 hour fire rating
  • + UL listed and labeled
  • + Auto-close on alarm signal
3 hr
fire rated
UL
listed
2 yr
warranty
5652 Series

Wind-load sheet

Wind

26-ga galvanized curtain with nylon windlocks engineered against verified wind pressure. Code-compliant for the wind zones along the Blue Ridge corridor and beyond.

  • + Certified wind-load protection
  • + 12" enclosed barrel
  • + Polypropylene wear strips
12"
barrel
Yes
windlocks
25 yr
warranty
4300 Series

Aluminum grille

Sec

Open-air rolling grille for security, visibility, and airflow. Used in malls, airports, and shopping centers where shared HVAC needs to circulate while a tenant is closed.

  • + See-through curtain pattern
  • + Shared HVAC compatible
  • + Standard or custom anodize
Vis
+ airflow
Alum
curtain
3 yr
warranty
4400 Series

Counter shutter

Cnt

Counter doors built for the retail or service-window opening. Steel, stainless, or anodized aluminum. 20,000-cycle oil-tempered torsion springs and 10" brackets standard.

  • + 10" brackets standard
  • + 20,000-cycle springs
  • + Stainless steel option
20k
cycle spring
SS
option
2 yr
warranty
Operators

Size by cycle count, not by price.

A residential opener will burn out on a commercial duty cycle. Amarr distributes three operator brands: LiftMaster, Automatic Technology, and Opera by Manaras, across light, medium, industrial, and heavy industrial duty. We size by daily cycle count and door weight.

ModelTypeDutyWarranty
LiftMaster MAXUM JDC Jackshaft Industrial 5 yr
LiftMaster MAXUM JHDC Hoist Industrial 5 yr
Opera · Manaras Rapido RSH Hoist Heavy Ind. 2 yr
LiftMaster MAXUM TDC Trolley Industrial 5 yr
Automatic Technology Dominator Hiro Jackshaft Industrial 2 yr
LiftMaster Model MJ Jackshaft Medium 2 yr
Opera · Manaras OMT Trolley Medium 2 yr
Our process

Four steps. One contact.

Commercial work has more moving pieces than residential: code review, lead times, GC coordination, sometimes wind-load engineering. The process is the same regardless of project size; what changes is the depth of each step.

01 Site walk & spec call We measure the rough opening, assess existing structure and headroom, and walk through your duty cycle. Same week scheduling for the Roanoke Valley.
02 Engineered submittal CAD drawings, 3-part specs, jamb & track details, wind-load calcs where required. Submitted to your GC or architect for stamping before the order ships.
03 Manufacture & delivery Amarr builds to spec at their NC or KS plant. Lead times typical 3–6 weeks depending on color and configuration. We hold inventory on common SKUs.
04 Install & commissioning Crew install, operator wire-in, safety device test, force calibration, owner walkthrough. Maintenance contract optional for high-cycle facilities.
Sustainability

LEED-qualified across the line.

Amarr's commercial line is LEED-qualified across sectional, aluminum, rolling steel, and rolling sheet. Recycled steel content, polyurethane insulation with zero ODP and zero GWP, and FTC Made-in-USA compliance for ARRA Section 1605 procurement.

90%
Recycled steel
Up to 90% recycled content in Amarr steel doors, with another 5–10% reused at the steel mill.
0
ODP / GWP
Polyurethane and polystyrene cores are CFC, HFC, and HCFC free with zero ozone-depletion and warming potential.
100%
Recycled packaging
All Amarr product packaging is 100% recycled corrugate. Aluminum and steel manufacturing waste is recycled in-house.
USA
Made in
Compliant with FTC "Made in USA" standards and ARRA Section 1605 across the commercial sectional and rolling lines.
Common questions

Common questions from architects and GCs.

If your question isn't here, a five-minute spec call is fastest. Owner picks up. Bring your opening dimensions and we'll narrow the lineup over the phone.

What's the largest opening Amarr can build? +

Steel sectional commercial doors are stocked up to 32'2" wide and 30'1" tall, with custom builds up to 40' wide on some lines. Aluminum full view runs to 24'2" wide. Rolling sheet and rolling slat scale to most opening sizes. We confirm against the model spec sheet during your site walk.

Do I need wind-load rated doors in the Roanoke Valley? +

Most of our service area is below the threshold for state-mandated wind-load engineering, but it depends on the building's design wind speed and exposure category. We pull the IBC table for your specific site address as part of the submittal. For projects east of the Blue Ridge or for tall warehouses, we often spec the 5652 wind-load rolling sheet or a 3552 with the ClearView strut system.

What's the difference between polyurethane and polystyrene insulation? +

Polyurethane is foamed-in-place and bonds to the steel skins, creating a monolithic panel with the highest R-value per inch in the category. Polystyrene is a separate foam board sandwiched between the skins: cheaper, but lower R-value per inch and more prone to settling. For conditioned spaces and ASHRAE 90.1 compliance, we lead with polyurethane.

Can you handle the engineered submittal for our architect? +

Yes. Amarr publishes a full CAD/BIM library: drawings, 3-part specifications, jamb/framing/track details in PDF, DWG, DXF, and RFA. We package the submittal for your project, including any wind-load calculations, and send it to the architect or GC for stamping before the order ships.

What about color? Can we match our brand standard? +

Steel sectional ships in five stock colors: True White, Sandtone, Commercial Gray, Commercial Brown, and Black on select models. Amarr Color Zone is a custom paint program with 700+ Sherwin-Williams SnapDry colors factory-applied with the same warranty as a stock color. Aluminum doors run anodize, powder coat, or PVDF (Kynar) with custom RAL color matching available.

Do you offer service contracts after install? +

Yes. For high-cycle facilities (warehouses, distribution centers, dealerships, multi-bay service centers) we offer scheduled preventive maintenance with quarterly or semi-annual inspections. Includes spring tension checks, hardware torque, sensor alignment, and a written cycle-count log per door. Priority emergency response on a contract.

Spec quote

Send us your opening. We'll send back a real spec.

Drawings, dimensions, or a photo of the existing door. Whatever you have. We'll respond with a recommended Amarr SKU, operator class, lead time, and a flat install price within 24 hours.
